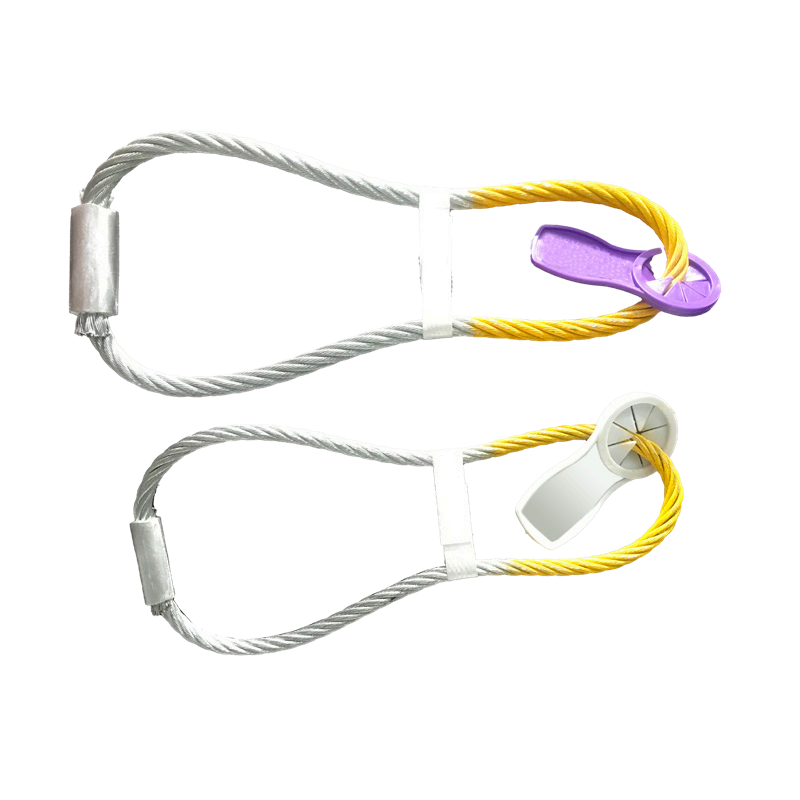

1 (1).png

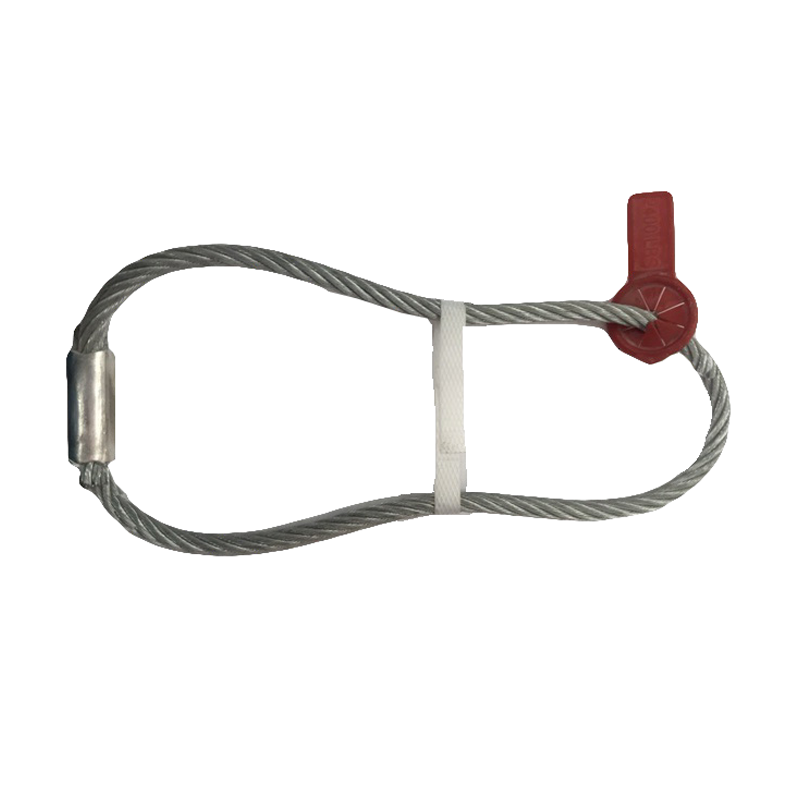

1 (2).png

Cast In Lift Anchor

A Cast-in loop is a circular lifting sling that is partially cast into a concrete component.
The lifting system consists of a circular embedded lifting hook and a recessed mold used to secure the hook to the concrete for lifting purposes.
The exposed area is used for assembly of the lifting hook for hoisting and transportation. After the lifting operation is completed, the exposed portion of the component is cut off and cannot be reused. They are particularly suitable for transporting foundation components, concrete beams, and hollow slabs.

    Contact us
    product details

    Product Parameters

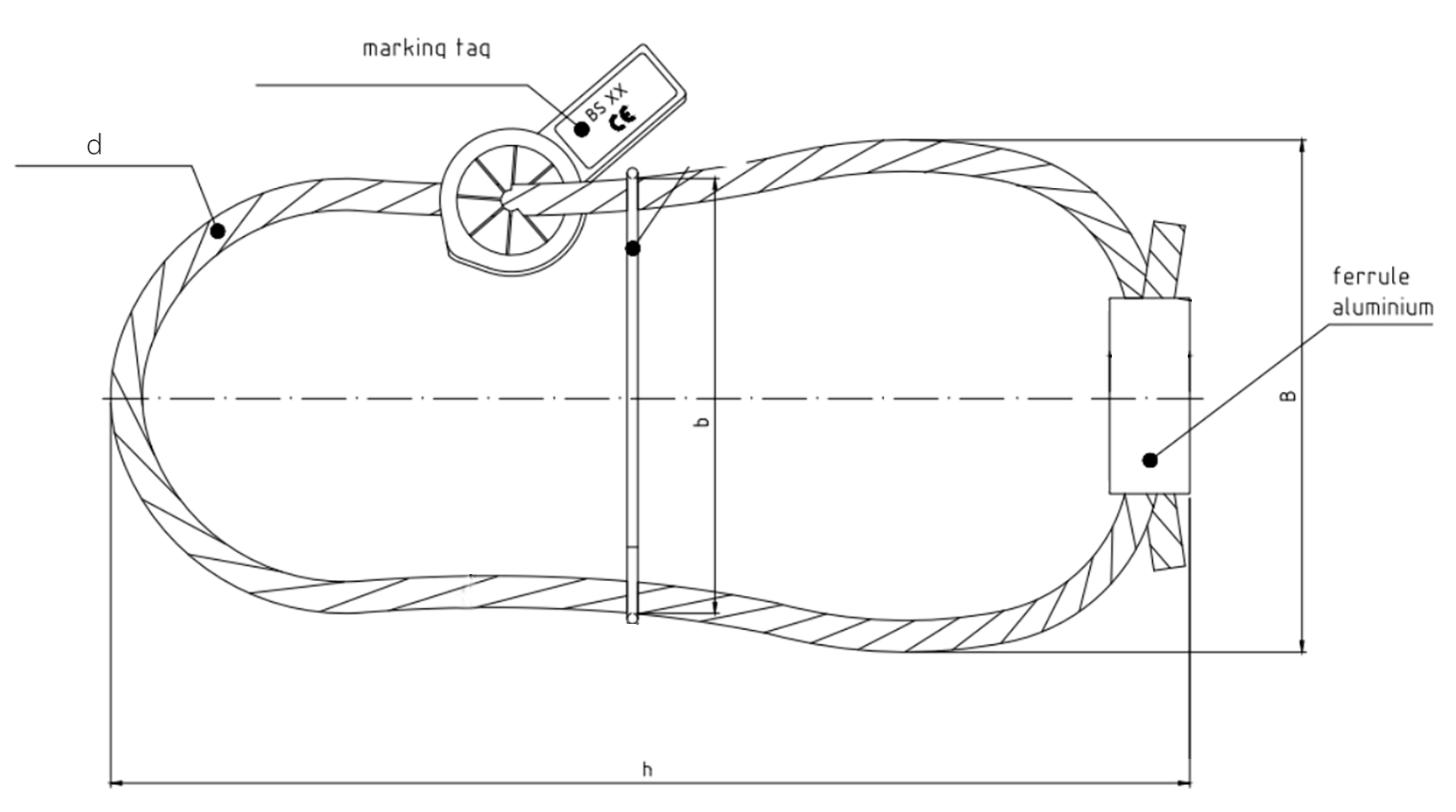

    load（t） B(mm) b(mm) h(mm) Minimum breaking load Rope dia.d（mm）
    0.8 85 65 200 2.4 6
    1.2 90 70 225 3.6 7
    1.6 100 70 245 4.8 8
    2 125 95 265 6 9
    2.5 140 115 285 7.5 10
    4 160 130 345 12 12
    5.2 180 160 390 15.6 14
    6.3 210 180 415 18.9 16
    8 220 180 460 24 18
    10 250 180 510 30 20
    12.5 280 225 570 37.5 22
    16 295 240 640 48 24
    20 320 60 715 60 28
    25 380 300 800 75 30
    t

    Material

    1 (1)
    01
    7 Jan 2019
    6x19+IWR/6x36WS+IWR Galvanized Steel wire rope
    Label Identification: plastic or steel
    Plastic packaging bag or S bracket
    Aluminium Ferrule
    It can be customized as needed with n=3:1 n=4:1

    Precautions

    01
    7 Jan 2019
    1.Before use, ensure it is correctly installed according to specified methods and check that all connections are secure.
    2.Regularly inspect the condition of the fixture, including components like the steel wire rope, hook, and fasteners. Replace any worn or damaged parts promptly.
    3.Do not exceed the rated load capacity of the fixture to prevent equipment damage or safety accidents.
    4.When using and storing the fixture, keep it dry and clean to avoid contact with oil, chemicals, and other harmful substances.
    1 (2)

    Product Features

    High-Strength Materials: Circular embedded lifting fixtures are usually made from high-strength steel or other alloy materials to ensure they have sufficient load capacity and durability.

    Application Fields

    Construction Engineering: Used in high-rise building construction for hoisting rebar, concrete components, etc.
    Civil Engineering: Used in infrastructure construction such as bridges and tunnels for hoisting large components or equipment.
    Mechanical Engineering: Used on factory production lines for hoisting heavy machinery or parts.
