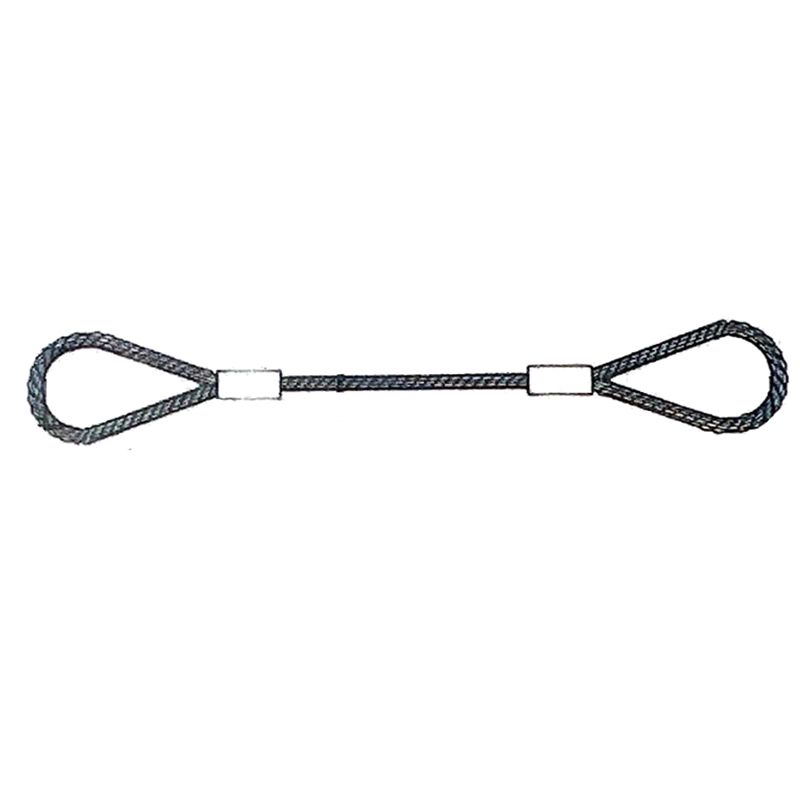

Wire Rope Sling
0102030405

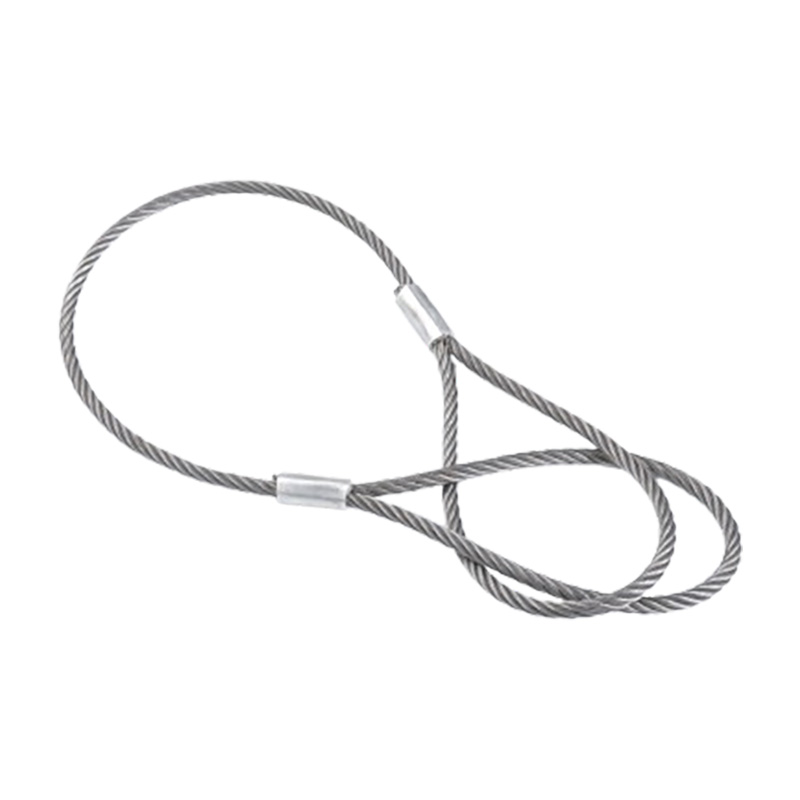

Wire rope pressing sling is a common type of connection and lifting tool
Product Parameters
| Rope dia.d（mm） | Soft loop dimensions （mm） | MBL（T） | WLL(T） |
| 6 | 120 | 1.6 | 0.3 |
| 8 | 160 | 2.9 | 0.6 |
| 10 | 200 | 4.5 | 0.9 |
| 12 | 240 | 6.5 | 1.3 |
| 14 | 280 | 8.9 | 1.8 |
| 16 | 320 | 11.6 | 2.3 |
| 18 | 360 | 14.7 | 2.9 |
| 20 | 400 | 18.1 | 3.6 |
| 22 | 440 | 21.8 | 4.4 |
| 24 | 480 | 26.1 | 5.2 |
| 26 | 520 | 30.6 | 6.1 |
| 28 | 560 | 35.4 | 7.1 |
| 30 | 600 | 40.7 | 8.1 |
| 32 | 640 | 46.3 | 9.3 |
| 34 | 680 | 52.3 | 10.5 |
| 36 | 720 | 58.6 | 11.7 |
| 38 | 760 | 65.3 | 13.1 |
| 40 | 800 | 72.3 | 14.5 |
| 42 | 840 | 79.8 | 16 |
| 44 | 880 | 87.6 | 17.5 |
| 46 | 920 | 95.4 | 19.1 |
| 48 | 960 | 104.6 | 20.9 |
| 50 | 1000 | 112.9 | 22.6 |
| 52 | 1040 | 122.1 | 24.4 |
| 54 | 1080 | 132.2 | 26.4 |
| 56 | 1120 | 141.3 | 28.3 |
| 58 | 1160 | 152.3 | 30.5 |
| 60 | 1200 | 162.4 | 32.5 |
| 64 | 1280 | 178 | 35.6 |
| 68 | 1360 | 201 | 40.2 |
| 72 | 1440 | 224.8 | 45 |
| 76 | 1520 | 250.5 | 50.1 |
| 80 | 1600 | 277.2 | 55.4 |
| 84 | 1680 | 305.6 | 61.1 |
| 88 | 1760 | 335.9 | 67.2 |
| 92 | 1840 | 367.1 | 73.4 |
| 96 | 1920 | 400 | 80 |
| 100 | 2000 | 434.1 | 86.8 |
| 104 | 2080 | 469 | 93.8 |
| 108 | 2160 | 505.7 | 101.1 |
| 110 | 2200 | 524.9 | 105 |
| 120 | 2400 | 624.6 | 124.9 |
Production Process
01
7 Jan 2019
1. Preparation: First select the appropriate steel wire rope and compatible pressed joints. Clean the end of the steel wire rope thoroughly, removing oil, dirt, and other impurities to ensure a clean surface for good combination.

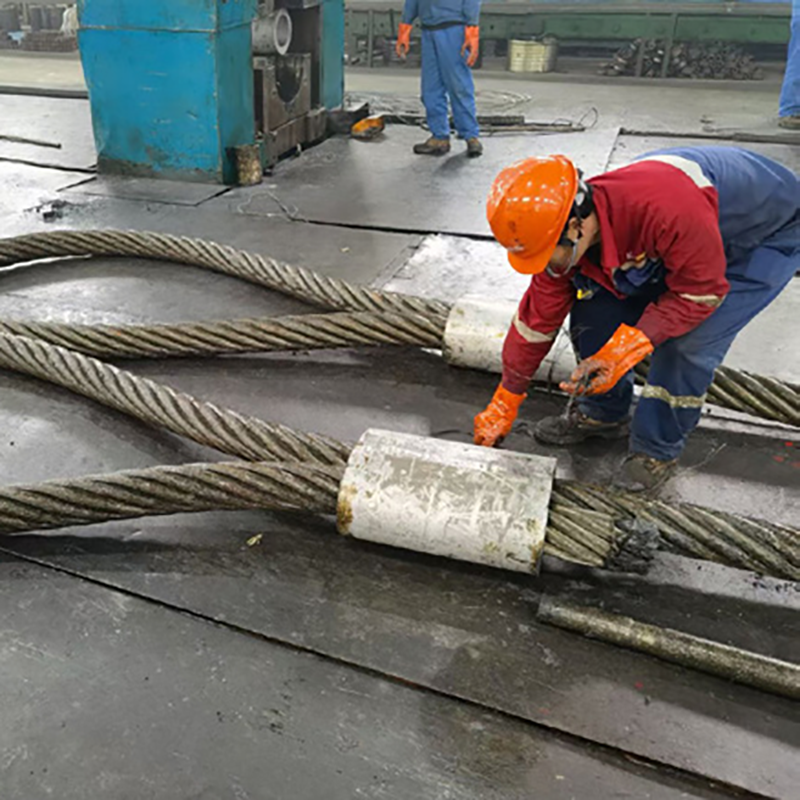

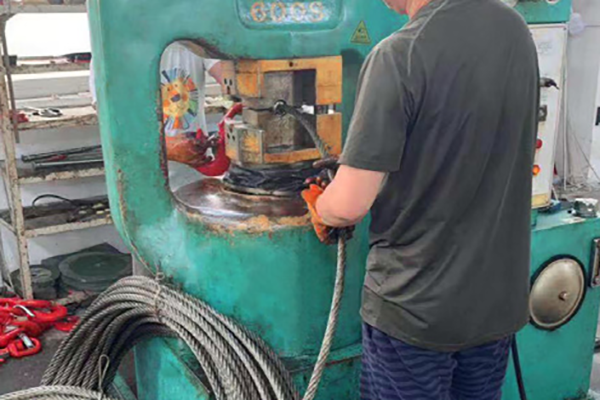

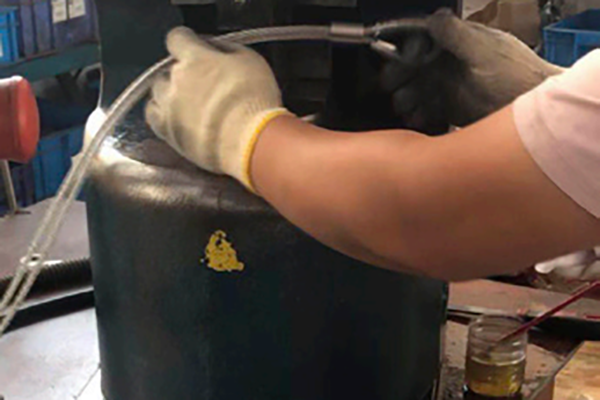

2. Pressing operation: Insert the wire rope into the corresponding part of the pressing joint, then use special pressing equipment to press the joint according to the specified pressure and mold shape. During pressing, the joint material deforms and grips the wire rope, and multiple pressings are usually performed at the end to ensure a secure connection.
Characteristics
01
7 Jan 2019
1. Strong Connection: The pressing process makes the joint closely adhere to the wire rope, so it is less likely to loosen or slip under tension, resulting in a high connection strength.
2. Good weight-bearing capacity: Depending on the selected wire rope specifications and the quality of the pressing process, it can bear a considerable weight and meet the needs of various lifting and pulling operations.
3. Anti-wear: The pressed joint provides protection for the end of the wire rope, which can reduce wear at the end and extend the service life of the slings compared to some other connection methods.
Application Fields
01
7 Jan 2019
It is widely used in construction, port operations, mining, heavy lifting and transportation, wind power equipment installation and other industries, for lifting large components, transporting bulk materials, and pulling heavy equipment, etc., where reliable transmission of force is required.
Maintenance and Inspection Points
01
7 Jan 2019
1.Joint inspection: Regularly check the pressed joints for any signs of distortion, cracks, etc. If any abnormalities are found, replace the sling immediately.
2. Joint inspection: pay attention to whether the juncture of wire rope and the pressed joint is loose, if so, it needs to be inspected and handled.
3. Use Note: Avoid severe impacts and excessive bending, keep it clean, and prevent it from being contaminated by corrosive substances that may affect its performance and lifespan.
