Single Stranded And Double-Sided Cable Grip Type MGS

Cable Grip

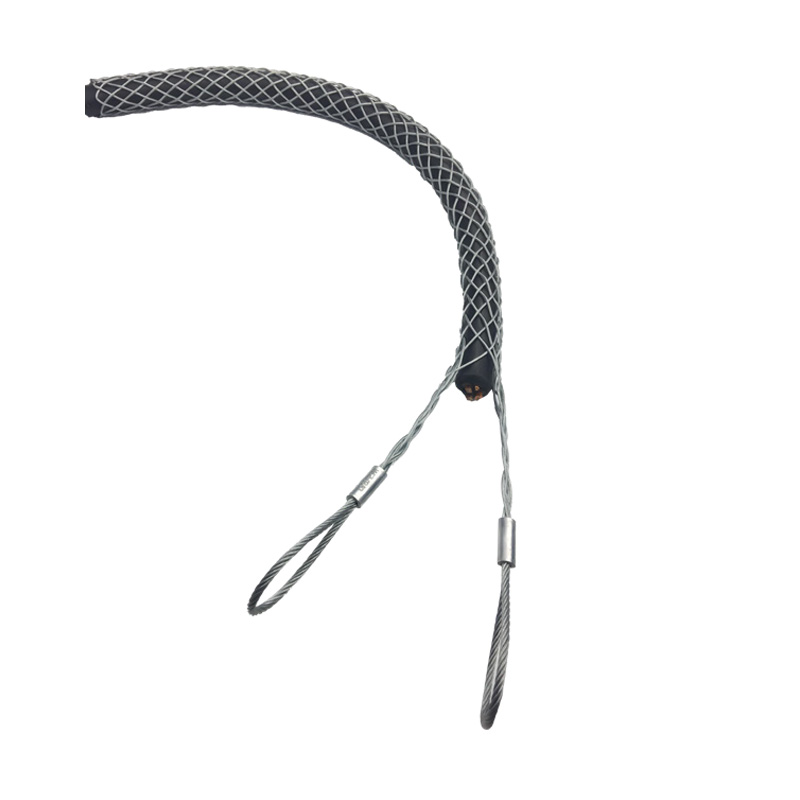

Single Stranded And Double-Sided Cable Grip Type MGS

The Single-Side Drawstring Mesh Sleeve, MGS, is a high-performance tool specifically designed for cable and pipeline protection. It combines robust materials, precision manufacturing processes, and user-friendly design to provide excellent protection and organization solutions.It adopts single strand weaving, and the cable head can be threaded out, making it easy to install and connect. The double-sided pull type cable
grip is suitable for pulling and dragging the middle of the cable.The materials of cable grip can be divided into hot-dip galvanized, stainless steel 304, and stainless steel 316. The materials of the compression
connection parts include aluminum alloy compression, stainless steel compression, and copper sleeve compression.
Precautions:

1.Before use, ensure that the sleeve is correctly installed according to the manual, and check that all connections are secure.
2.Regularly inspect the sleeve for wear, breaks, or aging, and replace any damaged parts promptly.
3.Do not exceed the rated load capacity of the sleeve to prevent equipment damage or safety accidents.
4.When using and storing the sleeve, keep it dry and clean to avoid contact with oil, chemicals, and other harmful substances.

    Product Parameters

    Model Size Range Mesh length Total length Breaking load
    MGS-4 45388 140 190 100
    MGS-8 45452 230 260 100
    MGS-12 45547 300 360 200
    MGS-16 13-18 500 600 425
    MGS-22 18-25 520 620 625
    MGS-30 25-37 550 720 875
    MGS-45 37-50 620 800 3000
    MGS-60 50-63 750 980 4408
    MGS-75 63-75 900 1180 4408
    MGS-90 75-88 950 1220 5000
    MGS-100 88-101 1000 1320 6000
    MGS-110 101-114 1180 1450 6000

    Product Features

    zt
    01
    7 Jan 2019
    Single-Side Drawstring Design: The unique single-side drawstring design makes installation and removal more convenient and quick without the need for special tools or skills.
    High Durability: Made from high-quality materials with excellent wear resistance and aging resistance, suitable for long-term use in harsh environments.
    Easy Installation and Removal: With a simple structure, it is easy to install and remove without the need for special tools or skills.
    Safety and Stability: Provides stable support and fixing, reducing damage to cables due to movement or vibration.
    Flexibility: The design is flexible, easily adapting to different diameters of cables to meet diverse application needs.

    Application Fields

    Industrial Automation: Suitable for automated production lines that require cable protection.
    Power Transmission: Used for cable management and protection in power systems.
    Construction Sites: Protects cables from damage on construction sites and facilitates quick replacement.
    Other Industries: Such as automotive manufacturing, aerospace, shipbuilding, and other fields requiring cable protection.
