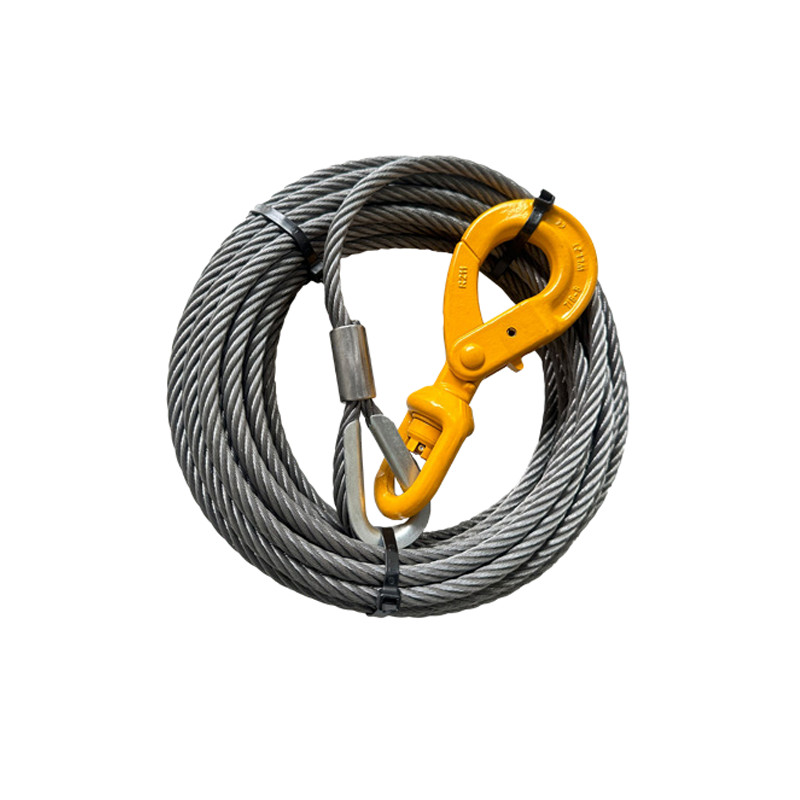

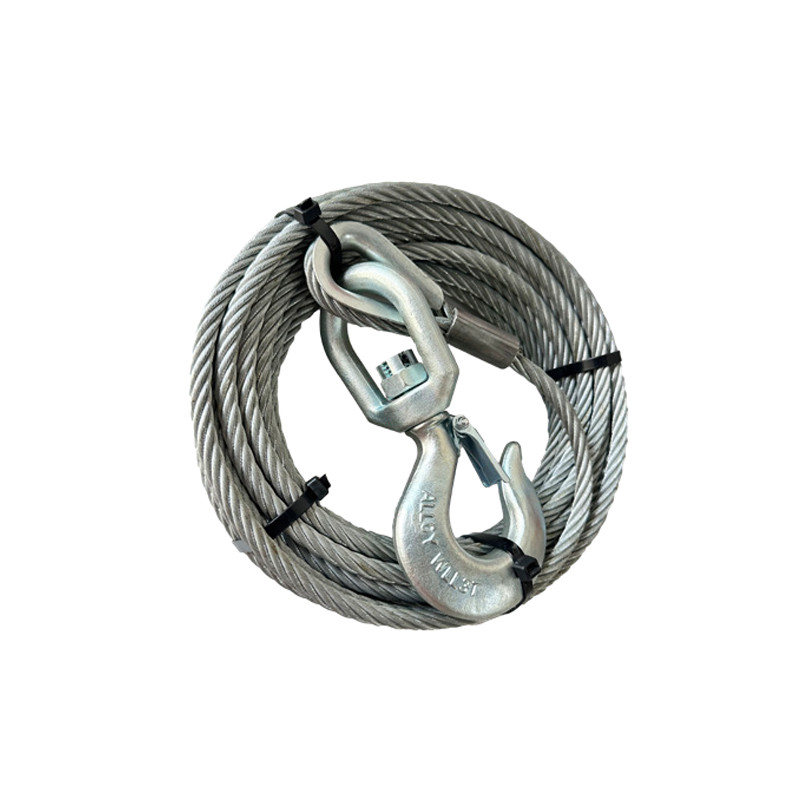

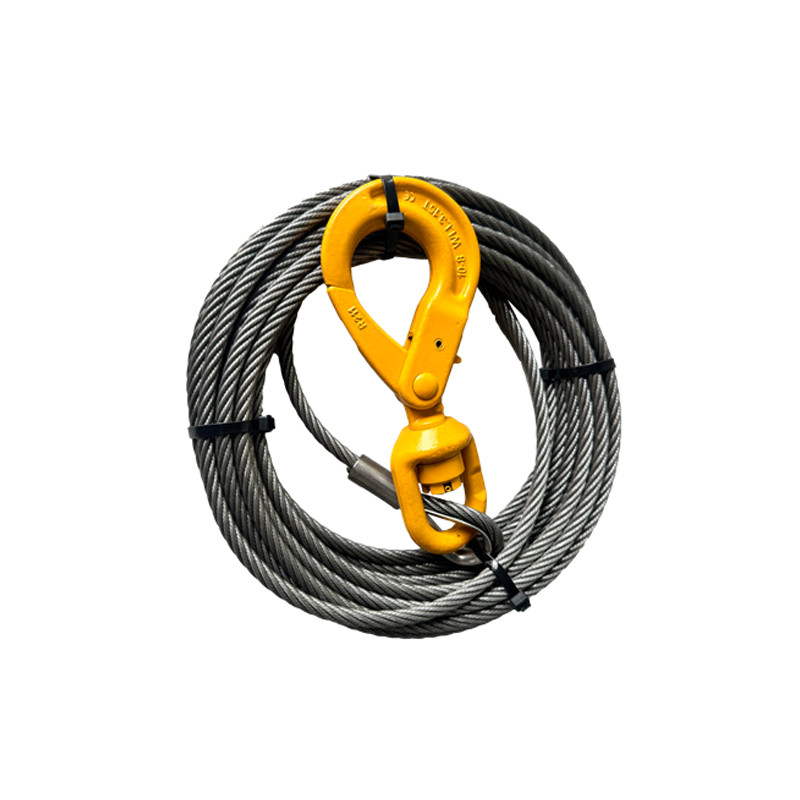

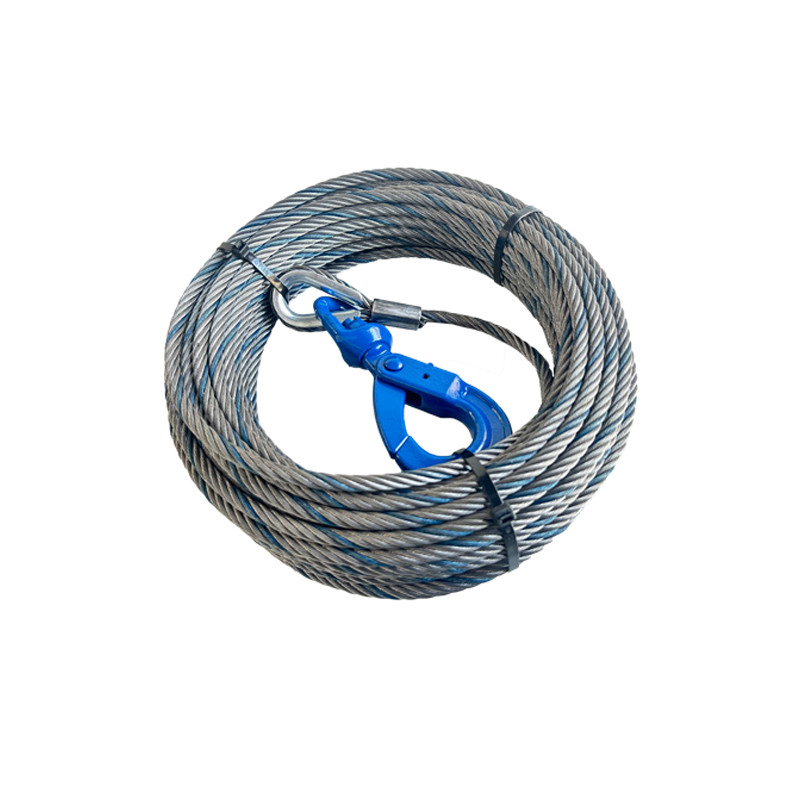

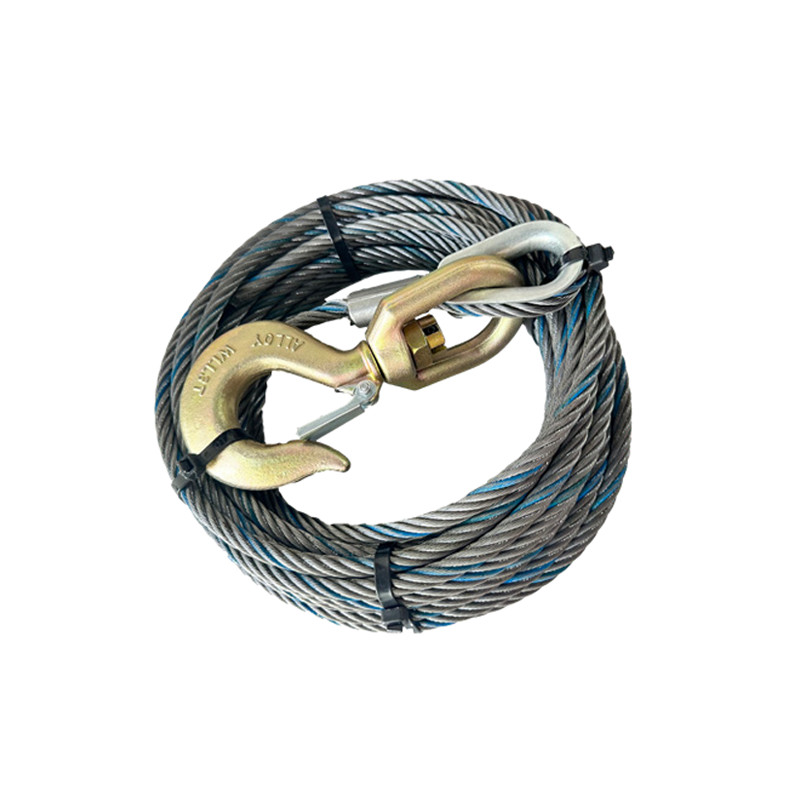

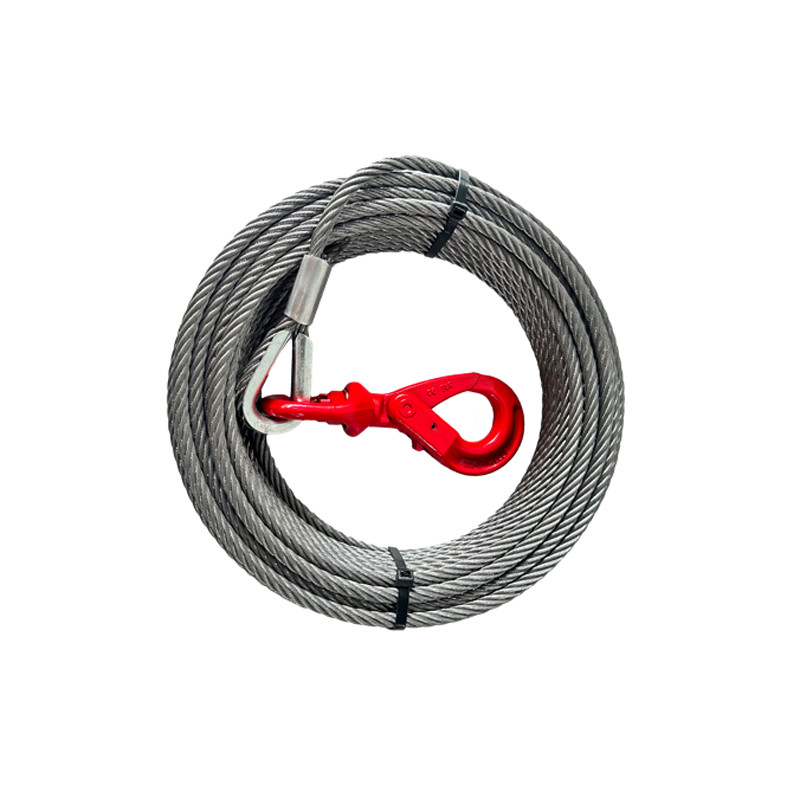

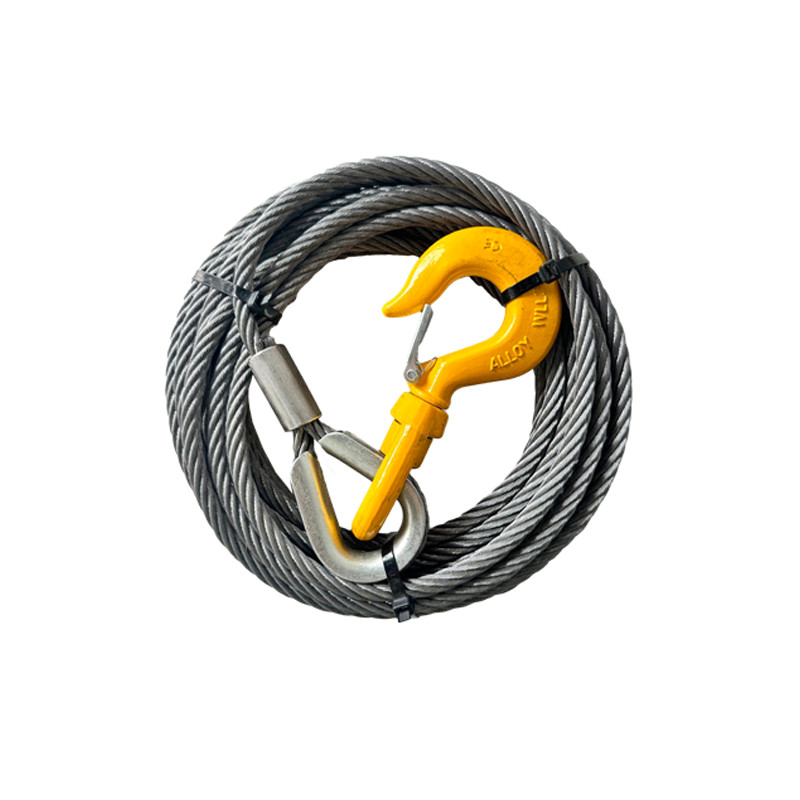

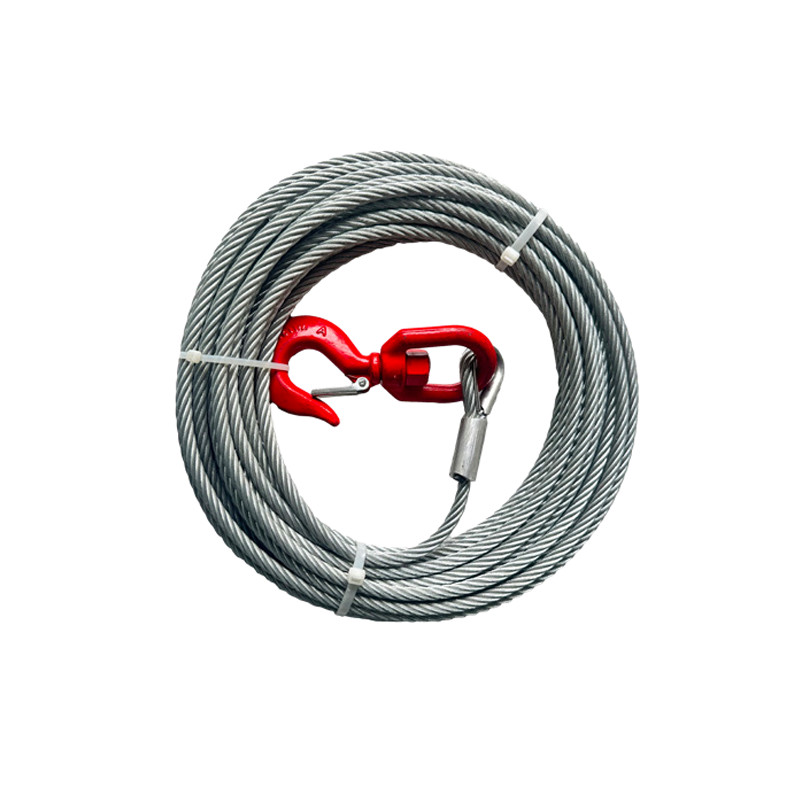

Car Trailer Wire Rope Winch
Product Parameters
| Model | Size（mm） | ≥Fiber core rope | ≥steel core | ≥1960Mpa Super steel core | ≥2160Mpa Super steel core | ||||
| ZH10 | 3/8" | 3785 | 13440 | 4250 | 15100 | 5428 | 19000 | 5700 | 20400 |
| ZH11 | 7/16" | 5126 | 18200 | 5511 | 19291 | 5828 | 20400 | 6400 | 22400 |
| ZH13 | 1/2" | 6647 | 23600 | 7087 | 24805 | 7485 | 26200 | 8285 | 29000 |
| ZH14 | 9/16" | 8394 | 29800 | 8628 | 30200 | 9485 | 33200 | 10457 | 36600 |
| ZH16 | 5/8" | 10309 | 36600 | 11257 | 39400 | 11771 | 41200 | 12971 | 45400 |
| ZH18 | 11/16" | 12000 | 42000 | 1291 | 45200 | 14857 | 52000 | 16400 | 57400 |
| ZH20 | 3/4" | 14800 | 51800 | 1594 | 55800 | 18342 | 64200 | 20228 | 70800 |
| ZH22 | 7/8" | 17885 | 62600 | 19314 | 67600 | 22228 | 77800 | 24514 | 85800 |
Performance Features
01
7 Jan 2019
High Strength: One of its core features, it is capable of pulling various types of vehicles, from lightweight compact cars to heavyweight buses and trucks. Its breaking tensile force is usually much higher than that of ordinary ropes, which is sufficient to meet the pulling force requirements in normal towing, rescue, and transportation, ensuring the safety of the towing process.
Flexibility: Despite its high strength, it still has a certain degree of flexibility. This makes it convenient to wrap around vehicle hooks, towing rings, etc. during connection, and it can bend moderately to follow the movement of the vehicle during towing, without being too rigid and affecting the towing effect.
Durability: Due to the high-quality materials and some protective treatments, it has good durability. It can be used repeatedly and, under normal conditions, with proper maintenance, such as regular cleaning and inspection, it can continuously provide reliable connection services for vehicle towing, rescue, and transportation.
Specifications and Dimensions
01
7 Jan 2019
Length specifications: There are various lengths available for selection, commonly ranging from several meters to several tens of meters. For example, a tow rope used for temporary towing between cars may have a length of 3 - 10 meters, while a tow rope used by a tow truck to tow vehicles over a larger area may have a length of 20 - 50 meters or more.
Diameter specifications: The diameter size also comes in different specifications, which are usually determined by the amount of force required to be withstood. Car towing ropes with smaller diameter may be suitable for towing small vehicles, while larger diameter ones are used for pulling heavier large vehicles. Generally, diameters ranging from 6 to 20 millimeters are more common.
Cautions when using
01
7 Jan 2019
Proper Connection: Before using, make sure that the tow rope is properly connected to the towing device on the towing vehicle (such as a tow truck or rescue vehicle) and the appropriate towing point on the vehicle being towed (such as the tow ring on the front bumper), and that the connection is secure to prevent any slipping or disconnection during the towing process, which could lead to a safety accident.
Proper Tension: Control the pulling force according to the weight of the towed vehicle, road conditions, etc. to avoid the breaking of car towing rope or unnecessary damage to the towed vehicle, such as damaging some parts like front bumpers.
Regular inspections: Before and after use, regularly inspect the car towing rope to check if there are any broken wires, outer layer wear, corrosion, etc. If there are any issues, replace or repair them in time to ensure safety of use .
