Single Eye Pipeline Traction Cable Grip Type DSG

Single Head Traction

Single Eye Pipeline Traction Cable Grip Type DSG

The single-eye pipeline traction net sheath DSG is a cable net sheath specifically designed for pulling cables within pipes or cable ducts.Single weave,used for stay wire on pipe or cable slot.


Precautions:
1. Although the DSG cable net sheath has high strength and elasticity, avoid excessive bending or twisting during use to prevent affecting its lifespan and performance.
2. The DSG cable net sheath should be regularly inspected and maintained to ensure it remains in good condition. If any wear, deformation, or cracks are found, replace the net sheath promptly.
3. When using and storing the DSG cable net sheath, keep it dry and clean to avoid contact with oil, chemicals, and other harmful substances that could affect its performance and lifespan.

    Product Parameters

    Model Size Range Total length Tensile load Breaking load
    DSG-6 45388 220 40 100
    DSG-9 45452 223 40 100
    DSG-12 45547 280 80 200
    DSG-15 45641 400 110 275
    DSG-18 15-18 440 170 425
    DSG-25 19-25 440 250 625
    DSG-31 25-31 462 350 875

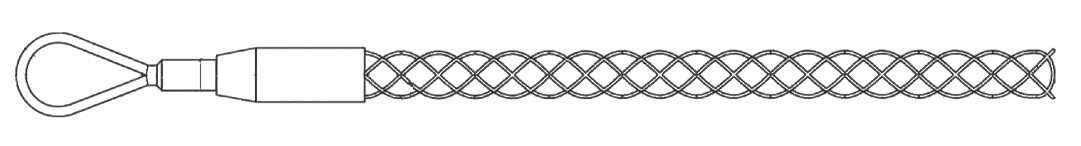

    Minitype Single Eye Rubber Protective Cable Grip Type DSC04

    Product Features

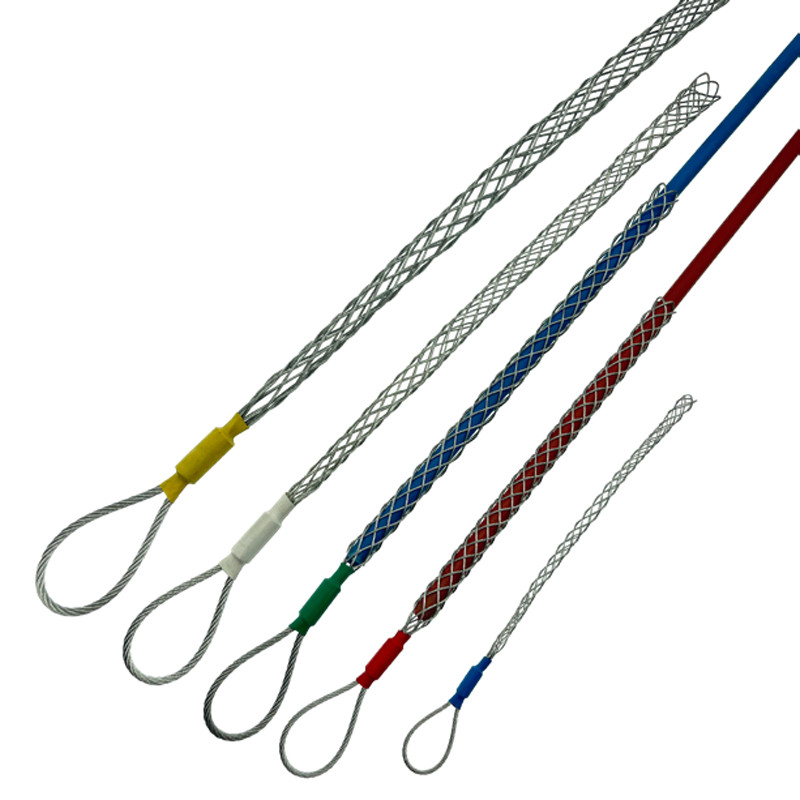

    Single Eye Pipeline Traction Cable Grip Type DSG03
    01
    7 Jan 2019
    Material and Structure: The DSG cable net sheath is made from galvanized steel wire rope or stainless steel steel wire rope, providing excellent corrosion resistance and wear resistance. Its mesh structure allows for significant radial expansion, making it easy to install and remove while ensuring a secure grip. The front end can be designed with connectors based on actual usage scenarios, facilitating convenient clamping.
    High Load Capacity: The maximum load can reach 0.875 tons (the specific value may vary by model), capable of withstanding substantial pulling forces, suitable for medium and short distance cable traction installation.
    Softness and Elasticity: The net sheath has moderate softness, with the steel wire rope being highly flexible and elastic, making it easy to insert into the cable line and navigate through bends without damaging the cable.
    Safety: At the beginning of traction, slight local slipping of the net sheath is normal, helping to reduce friction and damage to the cable.
    Customizability: It can be customized according to customer requirements, meeting different specifications and usage needs.

    Application Fields

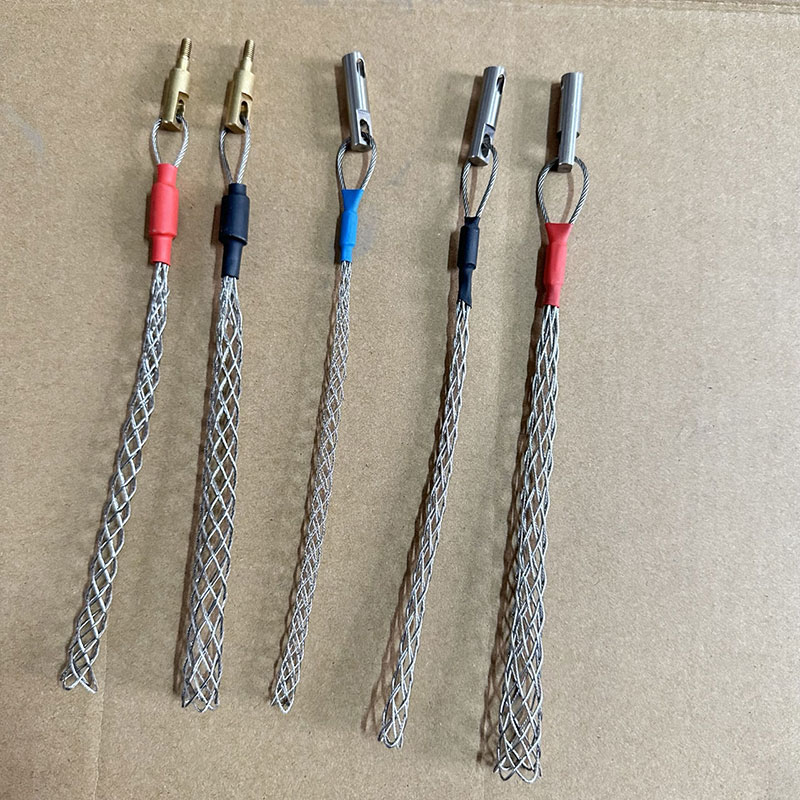

    Single-Strand-Braided-Cable-Protection-Mesh2
    01
    7 Jan 2019
    Electric Power and Telecommunications Industry: Used for the traction installation of power cables, communication cables, optical cables, etc., especially excelling in pulling operations within pipes or cable ducts.
    Construction: In large construction projects, it can be used to pull power lines, control lines, etc., ensuring safe cable laying.
    Other Fields: Also suitable for replacing lifting steel wire ropes, oil pipes, etc.
