Single Head Traction
0102

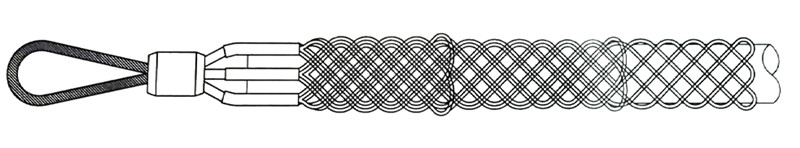

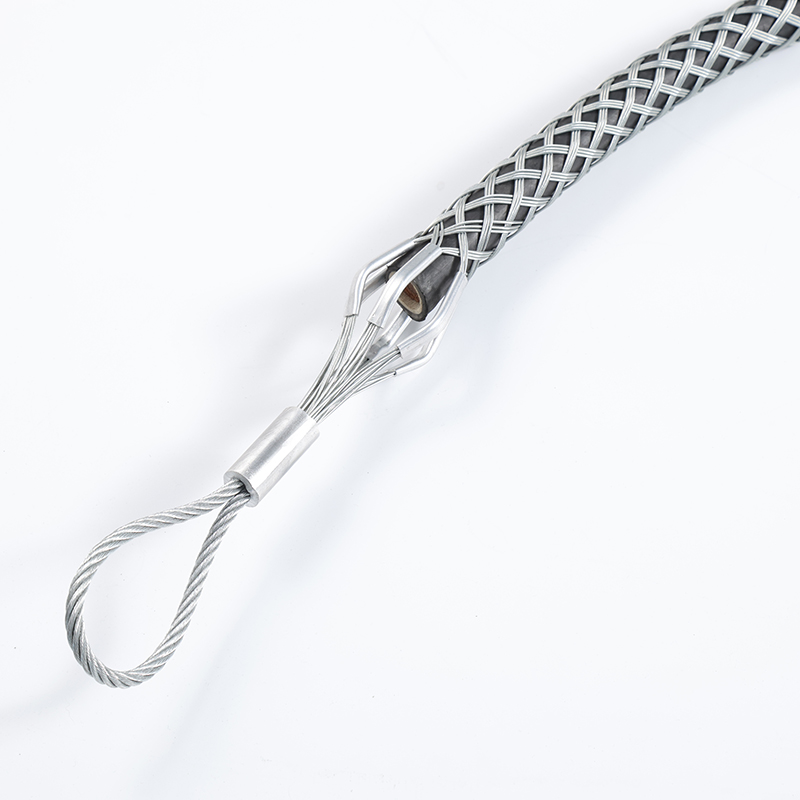

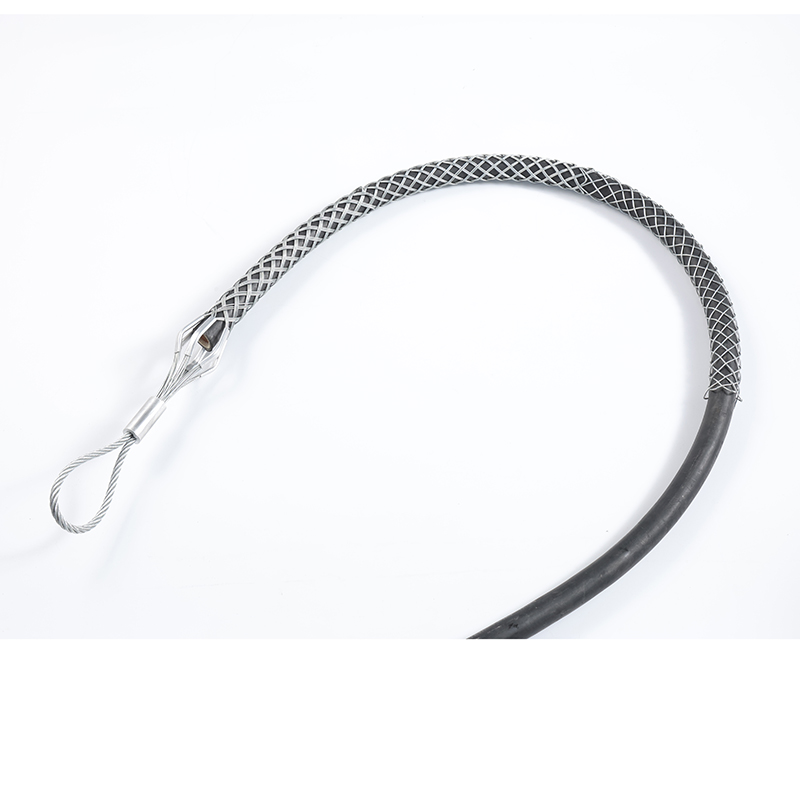

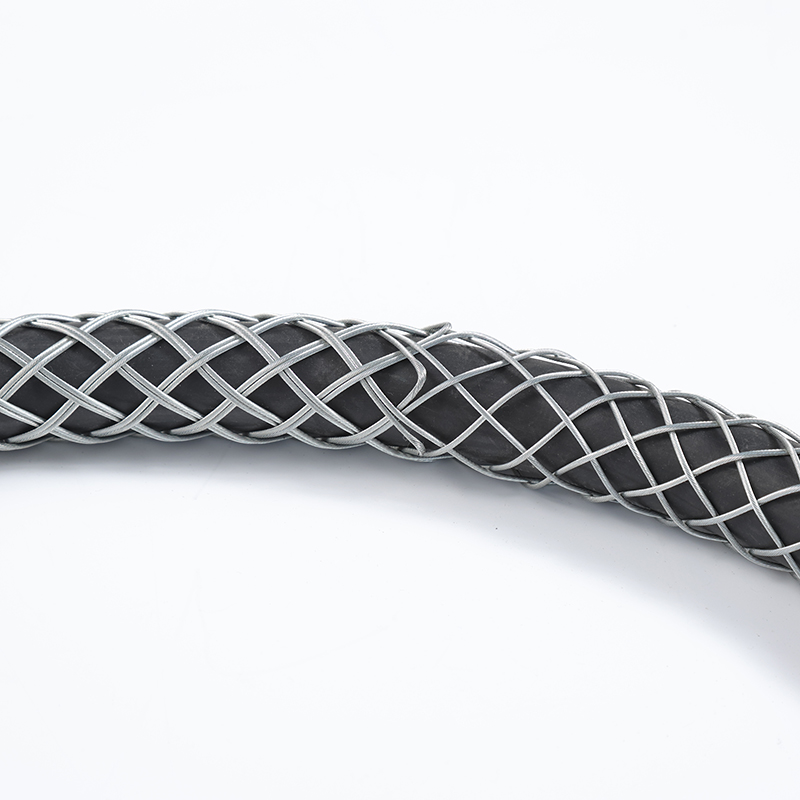

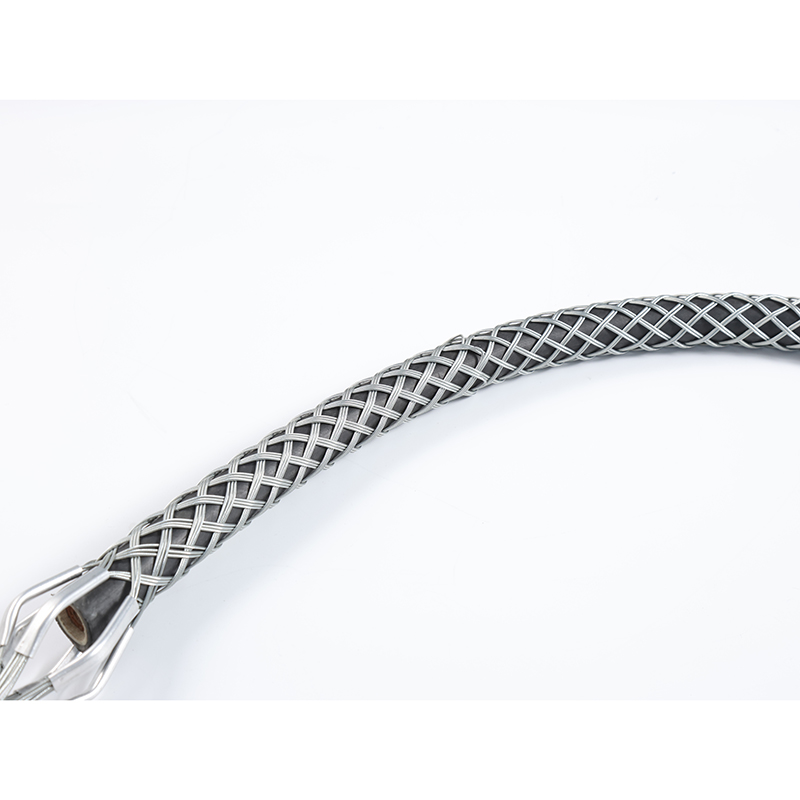

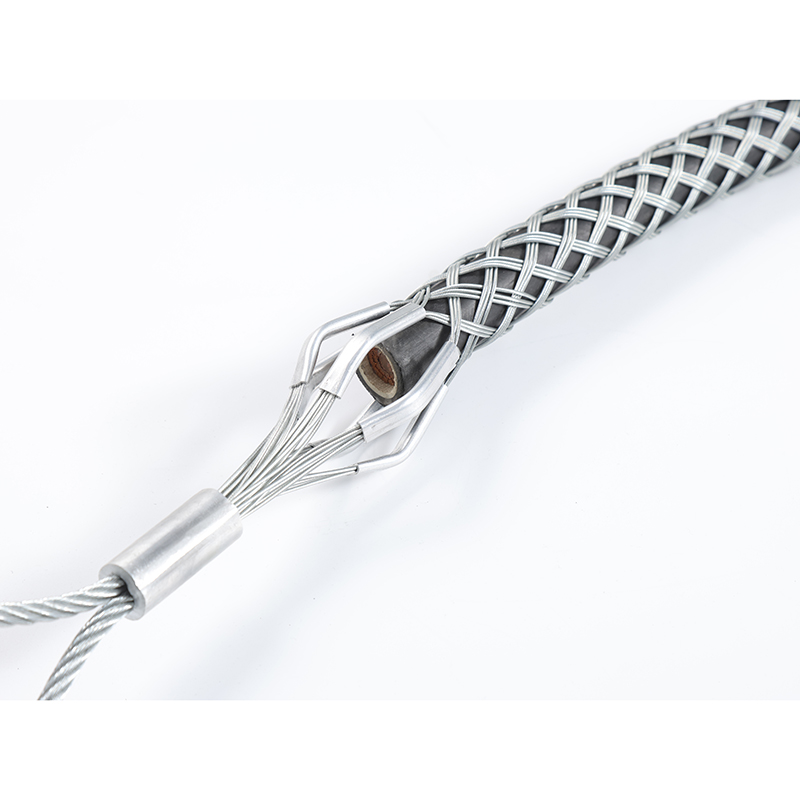

Rugged Multilayer Multi-Strand Cable Grip Type TGK
Product Parameters
| Model | Size Range | Mesh length | Total length | Breaking load |
| TGK-18 | 13-18 | 540 | 766 | 2000 |
| TGK-25 | 18-25 | 800 | 1020 | 2500 |
| TGK-37 | 25-37 | 850 | 1140 | 3500 |
| TGK-50 | 37-50 | 900 | 1194 | 6000 |
| TGK-63 | 50-63 | 920 | 1220 | 8000 |
| TGK-75 | 63-75 | 920 | 1220 | 8000 |
| TGK-88 | 75-88 | 920 | 1270 | 9000 |
| TGK-101 | 88-101 | 1100 | 1420 | 11000 |
| TGK-114 | 101-114 | 1200 | 1560 | 12000 |
| TGK-127 | 115-127 | 1350 | 1750 | 13500 |
| TGK-152 | 124-152 | 1500 | 1960 | 15000 |
| TGK-180 | 153-180 | 1850 | 2300 | 20000 |
| TGK-230 | 180-230 | 1950 | 2300 | 20000 |
| TGK-280 | 230-280 | 2000 | 2350 | 20000 |
| TGK-320 | 280-320 | 2200 | 2450 | 20000 |
Performance advantage
01
7 Jan 2019
High strength tensile strength: can withstand a large tensile force, can effectively protect the cable in the process of pulling, laying, etc. from being broken or damaged, to ensure the integrity of the cable, tensile capacity will vary depending on the specific specifications, some quality products can withstand several tons or even higher tensile force.
Good flexibility: flexible bending, torsion, easy to use in a variety of complex environments, can be well adapted to shape changes without damaging the cable or its own structure when go through bending pipe, round obstacles.
Wear resistance: In the process of contact with the cable surface and the external environment, it has good wear resistance to reduce the damage caused by friction to extend life span.
Scope of application
Widely used for cable laying, dragging, hoisting and other work scenarios in the industries of power, communication, construction, suitable for different diameter specifications of the cable, whether it is a thinner communication cable or a thicker high-voltage power cable, etc., can choose the appropriate specifications of multi-layer multi-strands cable mesh to assist construction. It mainly includes the following aspects:
01
7 Jan 2019

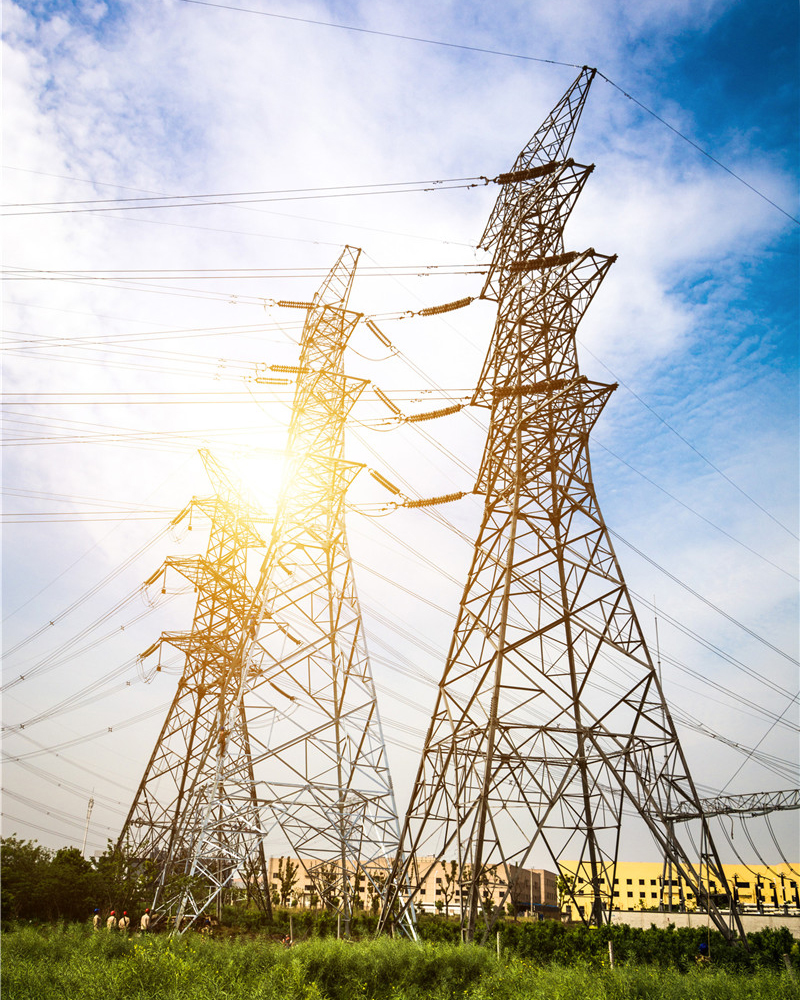

power industry
Power transmission and transformation line construction: In the construction process of power transmission and transformation lines, it is used to drag wires, connect various steel core aluminum stranded wires, insulated wires, ground wires, etc. It can pass through various types of pay-off blocks, to facilitate the spread of the wire, improve the construction efficiency, and ensure that the wire is not damaged in the traction process.
Cable laying: In the urban power grid transformation, substation construction and cable laying projects of various industrial and civil buildings, cable mesh covers can be used to fix and pull cables to ensure that cables can be accurately laid to the predetermined position. Especially in the laying of long distance and large section cables, its role is particularly important. Power equipment connection: used to connect cables between different power equipment to ensure the stability and reliability of power transmission. For example, in the transformer, switch cabinet, distribution box and other equipment inlet and outlet, the use of cable mesh can make the cable connection firmer.
01
7 Jan 2019

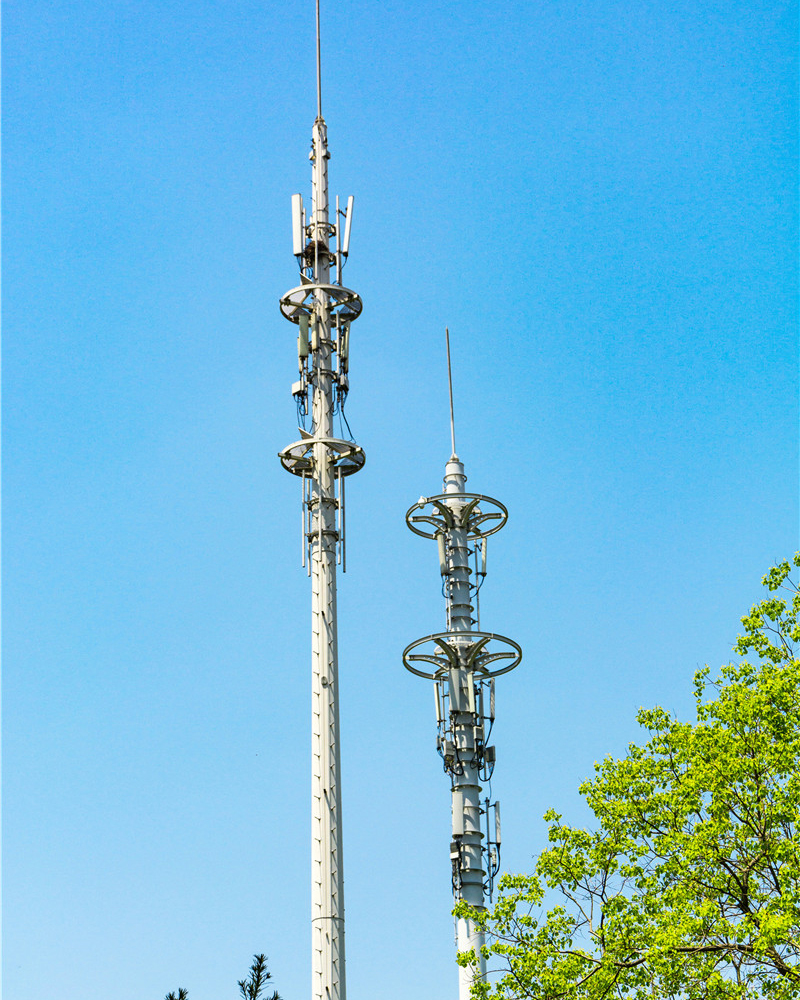

Communication industry
Communication cable laying: In the construction of communication networks, whether it is the laying of overhead optical cables, buried optical cables or indoor communication cables, cable mesh covers can be used to protect and pull cables. It can withstand the weight and pulling tension of the cable, prevent the cable from being damaged during the laying process, and ensure the stable transmission of communication signals.
Communication base station construction: During the construction and maintenance of communication base stations, the feeder needs to be connected with the antenna on the top of the base station. Due to the heavy feeder, it is necessary to use cable mesh to cover it and fix it on the iron frame of the base station to prevent the feeder from deforming due to its own weight and affecting the quality of signal transmission.
01
7 Jan 2019

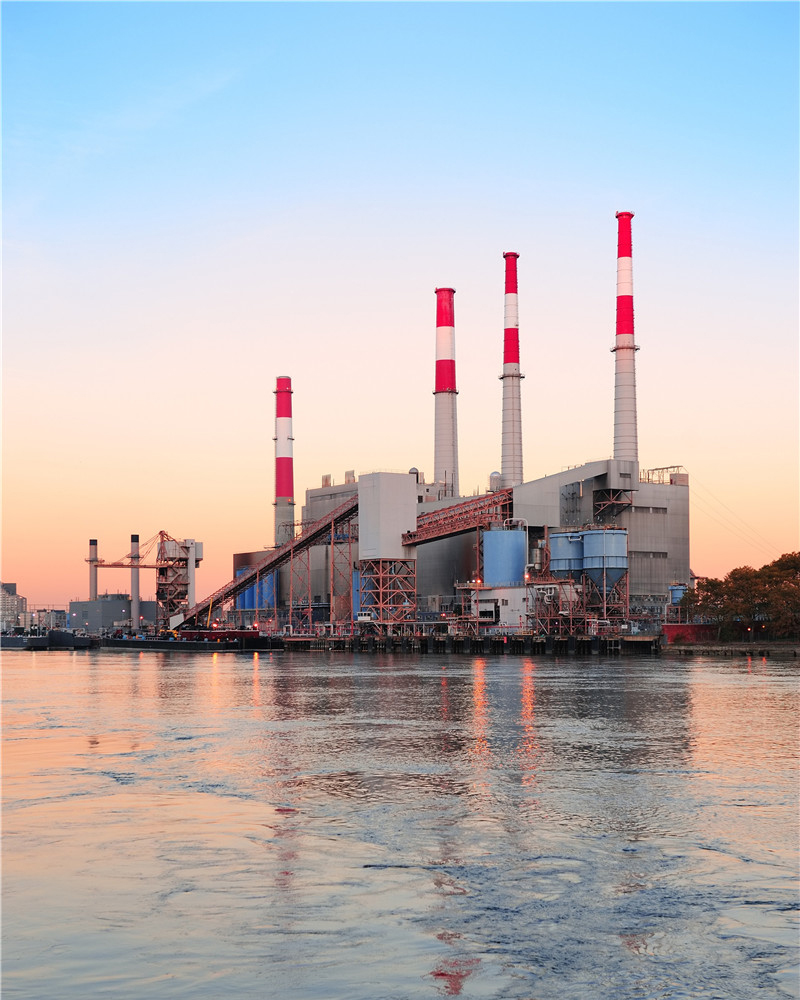

Petrochemical industry
Oil well operation: In the process of drilling, mining and maintenance of oil Wells, there are a large number of cables and wire ropes to be used. Multiple layers of cable mesh can be used to connect and protect these cables and wire ropes to ensure the normal operation of the well. For example, cable mesh plays an important role in the power supply and signal transmission cables of downhole instruments and the control cables of pumping units.
Crane wire rope replacement: the wire rope of the crane used in petrochemical enterprises needs to be replaced regularly, and the cable mesh sleeve can be connected to the new rope at one end and the old rope at the other end during the replacement process, and the old rope can be replaced by the rotation of the crane hoisting, which greatly saves labor and operation time.
01
7 Jan 2019
Construction industry
Building electrical engineering: During the installation of the electrical system of the building, the cable mesh can be used to fix and protect the wire and cable, avoid the wear and pull of the cable in the pipe and cable trough inside the building, and ensure the safe operation of the electrical system.
Building curtain wall engineering: In the curtain wall engineering of some large buildings, cables are needed to connect the lighting system and control system of the curtain wall. The cable mesh sleeve can pull and fix these cables, which makes the cable layout more orderly and beautiful, and it is also convenient for later maintenance and overhaul.
01
7 Jan 2019
Rail Transit industry
Subway tunnel construction: In the construction process of subway tunnels, a large number of cables and communication cables need to be laid for lighting, ventilation, signal transmission, etc. The cable mesh can be used for pulling and fixing these cables to ensure the safe laying of cables in the tunnel.
Railway electrification transformation: In the electrification transformation project of railway, we need to use cable mesh in the erection of catenary and the laying of cable. It helps people accurately install the cable to the predetermined position, and ensure that the cable is not affected by the external environment during long-term use.
01
7 Jan 2019
Shipbuilding and Marine Engineering
Ship cable laying: During the construction of the ship, various electrical equipment on the ship need to be connected through cables. Cable mesh can be used for the fixing and protection of ship cables to prevent the cable from being damaged by factors such as shaking and vibration of the hull during the voyage of the ship.
Offshore platform construction: In the construction of offshore oil platforms, offshore wind power platforms and other offshore projects, a large number of cables and wire ropes are also needed. Multi-layer multi-strand cable mesh can be used for the connection and protection of these cables and steel cables, adapting to the harsh conditions of the Marine environment to ensure the normal operation of Marine engineering.
01
7 Jan 2019

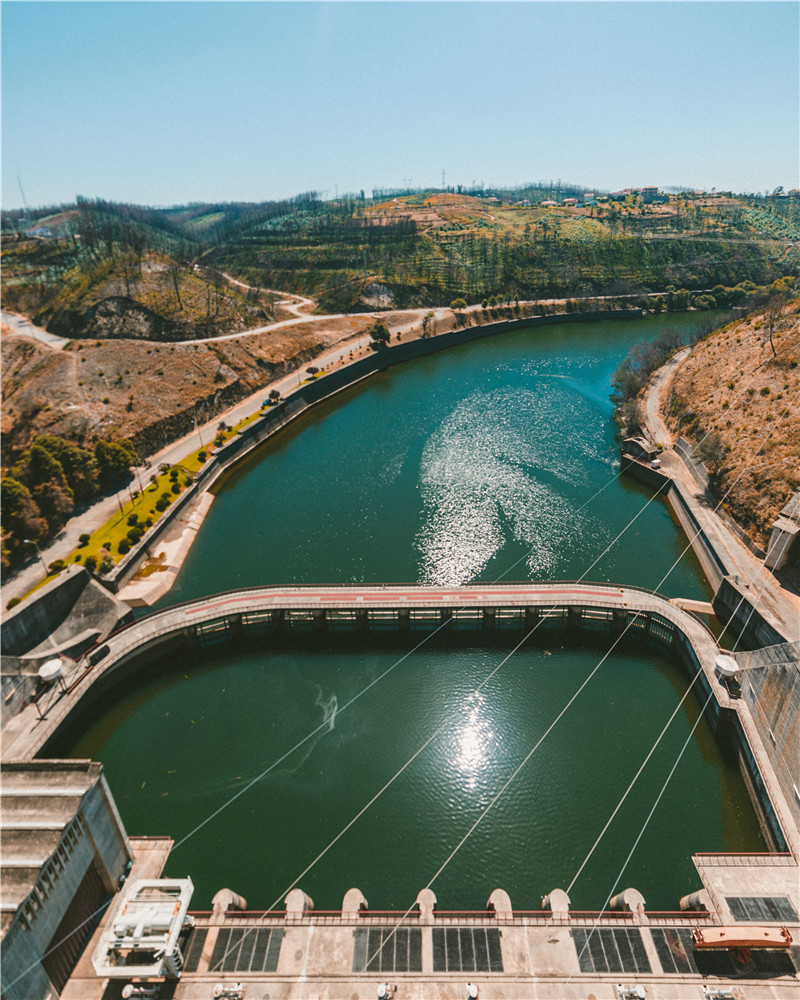

Water conservancy and hydropower industry
Hydropower station construction: In the construction process of hydropower station, the connecting cables of water turbine generator sets, transformers and other equipment need to be dragged and fixed. Cable mesh sleeve can meet the requirements of cable connection and protection of hydropower station to ensure the stable output of power.
Hydraulic engineering monitoring: In the monitoring system of hydraulic engineering, a large number of sensors and communication cables need to be used. Cable mesh covers can be used for the protection and traction of these cables, ensuring the accurate transmission of monitoring data.
